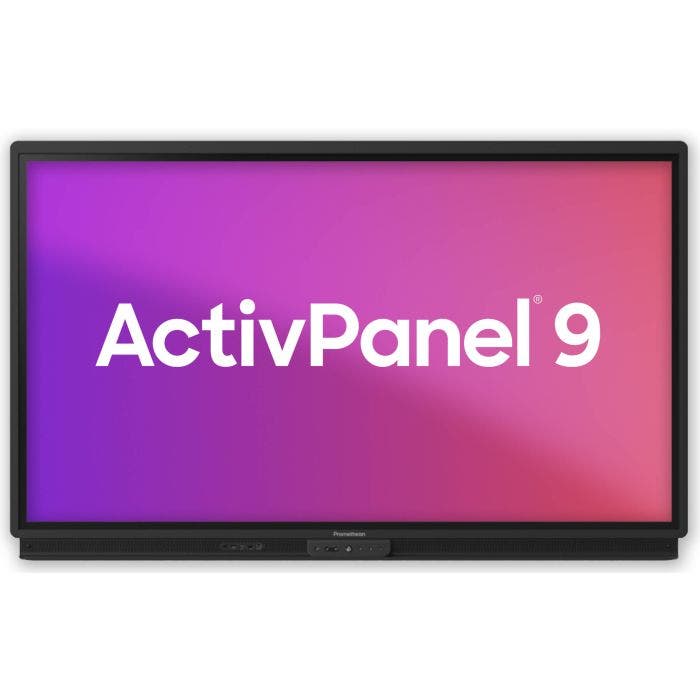

Promethean ActivPanel 9 AP9-A75-NA-1 Collaboration Display
Promethean ActivPanel 9 AP9-A75-NA-1 Collaboration Display
Specifications
Manufacturer: Promethean AV Distribution Limited
Manufacturer Part Number: AP9-A75-NA-1
Manufacturer Website Address: http://www.prometheanworld.com
Brand Name: Promethean
Product Line: ActivPanel 9
Product Model: AP9-A75-NA-1
Product Name: ActivPanel 9 AP9-A75-NA-1 Collaboration Display
Product Type: Collaboration Display
Display & Graphics
Screen Size: 75"
Display Screen Type: LCD
Backlight Technology: Direct LED
Screen Mode: 4K
Screen Resolution: 3840 x 2160
Scan Format: 2160p
Aspect Ratio: 16:9
Response Time: 20 ms
Contrast Ratio:
Brightness: 400 Nit
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Tempered Glass: Yes
Ambient Light Sensor: Yes
Touchscreen Information
Touchscreen: Yes
Multi-touch Screen: Yes
Number of Touch Points: 20
Processor & Chipset
Processor Manufacturer: ARM
Processor Type: Cortex A73
Processor Core: Quad-core (4 Core)
Memory
Standard Memory: 4 GB
Storage
Flash Memory Capacity: 32 GB
Audio
Speakers: Yes
Number of Speakers: 2
Microphone: Yes
RMS Output Power: 30 W
Network & Communication
Ethernet: Yes
Ethernet Technology: Gigabit Ethernet
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.0
Interfaces/Ports
HDMI: Yes
Number of HDMI Inputs: 2
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 3
USB: Yes
Network (RJ-45): Yes
Audio Line In: Yes
Audio Line Out: Yes
Composite Video: Yes
DisplayPort: Yes
Serial: Yes
Software
Operating System Platform: Android
Operating System: ActivPanel
Power Description
Input Voltage:
Power Consumption: 141 W
Standby Power Consumption: 500 mW
Physical Characteristics
Product Material: Tempered Glass
VESA Mount Compatible: Yes
VESA Mount Standard: 800 x 400
Height: 42.1"
Width: 68.1"
Depth: 4.4"
Weight (Approximate): 121.91 lb
Miscellaneous
Package Contents:
Energy Star: Yes
Manufacturer: Promethean AV Distribution Limited
Manufacturer Part Number: AP9-A75-NA-1
Manufacturer Website Address: http://www.prometheanworld.com
Brand Name: Promethean
Product Line: ActivPanel 9
Product Model: AP9-A75-NA-1
Product Name: ActivPanel 9 AP9-A75-NA-1 Collaboration Display
Product Type: Collaboration Display
Display & Graphics
Screen Size: 75"
Display Screen Type: LCD
Backlight Technology: Direct LED
Screen Mode: 4K
Screen Resolution: 3840 x 2160
Scan Format: 2160p
Aspect Ratio: 16:9
Response Time: 20 ms
Contrast Ratio:
- 1,200:1
- 5,000:1
Brightness: 400 Nit
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Tempered Glass: Yes
Ambient Light Sensor: Yes
Touchscreen Information
Touchscreen: Yes
Multi-touch Screen: Yes
Number of Touch Points: 20
Processor & Chipset
Processor Manufacturer: ARM
Processor Type: Cortex A73
Processor Core: Quad-core (4 Core)
Memory
Standard Memory: 4 GB
Storage
Flash Memory Capacity: 32 GB
Audio
Speakers: Yes
Number of Speakers: 2
Microphone: Yes
RMS Output Power: 30 W
Network & Communication
Ethernet: Yes
Ethernet Technology: Gigabit Ethernet
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.0
Interfaces/Ports
HDMI: Yes
Number of HDMI Inputs: 2
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 3
USB: Yes
Network (RJ-45): Yes
Audio Line In: Yes
Audio Line Out: Yes
Composite Video: Yes
DisplayPort: Yes
Serial: Yes
Software
Operating System Platform: Android
Operating System: ActivPanel
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Power Consumption: 141 W
Standby Power Consumption: 500 mW
Physical Characteristics
Product Material: Tempered Glass
VESA Mount Compatible: Yes
VESA Mount Standard: 800 x 400
Height: 42.1"
Width: 68.1"
Depth: 4.4"
Weight (Approximate): 121.91 lb
Miscellaneous
Package Contents:
- ActivPanel 9 AP9-A75-NA-1 Collaboration Display
- 2 x Pens
- VESA Wall Mount
- WIFI Module
- Cable pack
Energy Star: Yes
