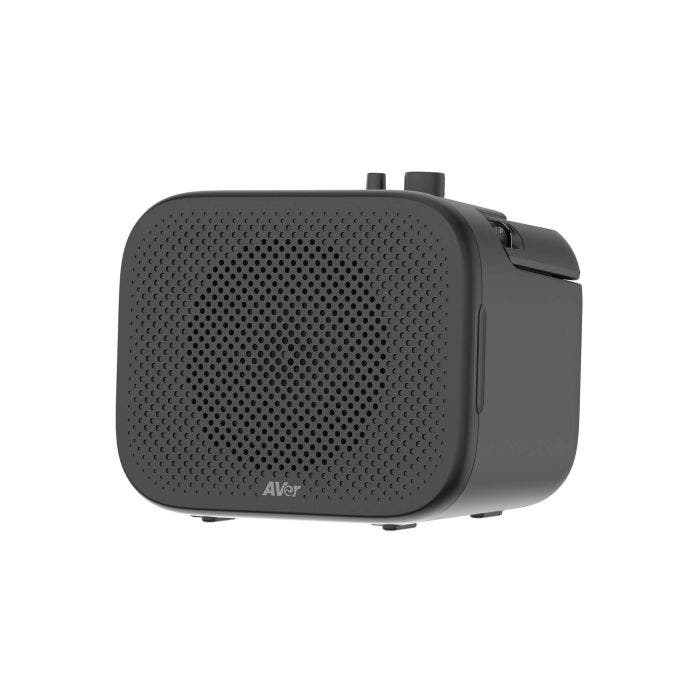

AUDIO SYSTEM AMPLIWAVE GO PORTABLE

Main Unit Specifications

Power Requirements

• Input: AC 100–240V

• Output: DC 19V / 3.42A

• Power Consumption: 65W

Battery

• Type: Li-ion (Rechargeable & Removable)

• Battery Life: Up to 8 hours (Fully Charged)

• Charging Time: Less than 4 hours (0% to 100%)

Audio

• Output Power: 30W RMS (Mono)

Display & Indicators

• Screen Information Displayed:

  • Power & Settings

  • Connection Status

  • Battery Level

  • Play/Record Status

  • Master & Wireless Volume Level

  • Firmware Version

• Power Button Indicators:

  • Solid Green: Power On

  • Solid Red: Charging

  • Flashing Red: Firmware Update / Reset

Connectivity

• Inputs:

  • USB 2.0 Type-A: Wireless Mic

  • Audio In (Mic & Line In): 3.5 mm

  • USB 2.0 Type-A: USB Drive (Up to 32 GB)

  • Bluetooth® 5.4

• Outputs:

  • ALD (Assistive Listening Device): 3.5 mm Stereo

  • Line Out: 3.5 mm Stereo

• Input/Output:

  • USB 2.0 Type-C (PC/Laptop)

Wireless & Operating Specs

• Transmitting Frequency: 2.4 GHz

• Operating Range: Up to 20 m (65 ft)

• Built-in Microphone Charging: Yes, supports up to 2 microphones

• Kensington Lock: Supported

• Screen Power Saving: Backlight turns off after 30 seconds

• Mounting Options: Wall Mount, Stand Mount

• Portability: Carry handle & strap compatible

Physical Dimensions & Environment

• Dimensions (W × H × D): 250.0 × 220.0 × 180.0 mm

• Net Weight (with Battery): 3 kg (6.6 lbs)

• Operating Conditions:

  • Temperature: 0°C to +35°C

  • Humidity: 10% to 90%

• Storage Conditions:

  • Temperature: -30°C to +60°C

  • Humidity: 10% to 90%

Wireless Microphone Specifications

Design & Features

• Wearing Type: Clip / Lanyard

• Microphone Type: Omni-Directional

• Volume Control: Up/Down Buttons

Connectivity

• Transmitting Type: Wireless

• Frequency: 2.4 GHz

• Input/Output:

  • Mic In: 3.5 mm Mono

  • USB Type-C: Charging / Firmware Update

Battery & Power

• Battery Type: Li-ion (Rechargeable & Removable)

• Battery Power: 3.7V

• Battery Life: Up to 10 Hours (Fully Charged)

Dimensions & Weight

• Microphone Dimensions (W × H × D): 33.0 × 130.0 × 28.0 mm

• Receiver Dimensions (W × H × D): 55 × 30 × 10 mm

• Net Weight: 35 g (0.08 lbs)

Environmental Conditions

• Operating Temperature: 0°C to +40°C

• Storage Temperature: -30°C to +60°C

• Humidity: 10% to 90%

Additional Note

• A wireless microphone comes pre-installed in the speaker’s charging port.
